Maximum Door Weight: 80KGS
Product Weight: 3.0KGS
Color: Black or White
Maximum Door Width: 1000mm with included tracks (additional width possible with purchase of Extension Rack)
Power Supply: 110-240 VAC, 24 VDC Power Pack
Safety Cut Off: Yes
Automatic to Manual Mode: Yes
Product Measurement: 490*72*63mm


tel no.

1. Easy install, without change existing door structure
2. Compact size, nice appearance and moden design
3. Systems can apply with sensor, remote control, push button, pet switch, photocell, card reader, lock and so on
4. Window and door mode can be swithed arbitrarily
5. 433.92hz model, can be suit with smart-home

Residental sliding window systems

Contact Us:

You are here:Home > Product list > Automatic sliding door operator > Residental Automatic Sliding Door Opener


PORT: Hangzhou, Shanghai or Ningbo etc.

SHIPPING: Worldwide by sea or by                    express delivery

   Automatic door win-slider specifications:

FOB PRICE: 135-170 USD

Residental automatic sliding door opener

MODEL: Residental automatic door Win-slider

Residental electric sliding door systems

Relate automatic sliding door operator:

Model: VZ-125


Send an inquiry

Operator Package Includes
One win-slider drive system
One Aluminium cover
Two Wall Mounted Wireless Push Buttons
One Low voltage plug-in power pack
Two 500mm racks with assembly kit
Installation screws and Allen key

Instruction manual

Residental sliding door opener for home




Residental Automatic Sliding Door Opener

   Win-slider Description:

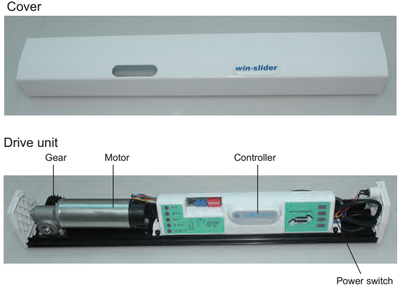

Win-slider is a compact D.I.Y system designed to residental automatic sliding doors and windows like automatic patio door. The system is consists of a motor device, electronic controller, and a low voltage DC power supply encased in an aluminum slim line housing. Your door is activated by the specially designed wall-mounted wireless push button switch that are installed on both sides of the door. (Also infrared sensors are available as an optional accessories).

LEAD TIME: 1-5 Days

WARRANTY: 24 Months

Residental sliding door systems
