FOB PRICE: 320-500 USD

automatic sliding door detail information


automatic sliding door openers commercial

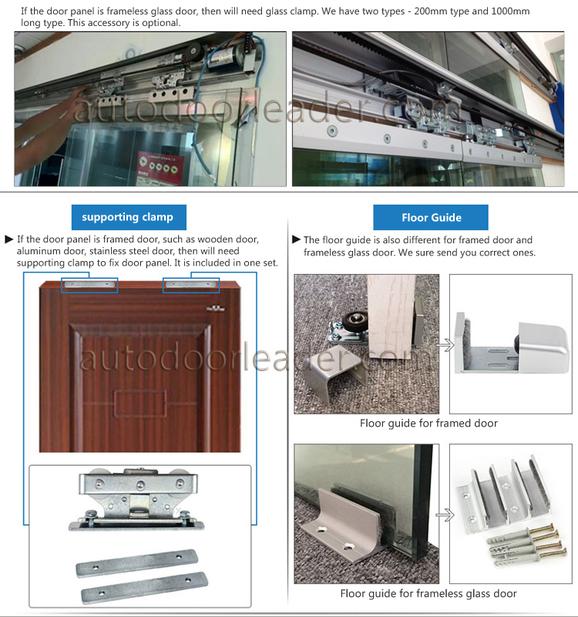

Spare parts for sliding door automatic

You are here:Home > Product list > Automatic sliding door operator > LEADER electric sliding door operator VZ-195



SHIPPING: Worldwide by sea or by                    express delivery

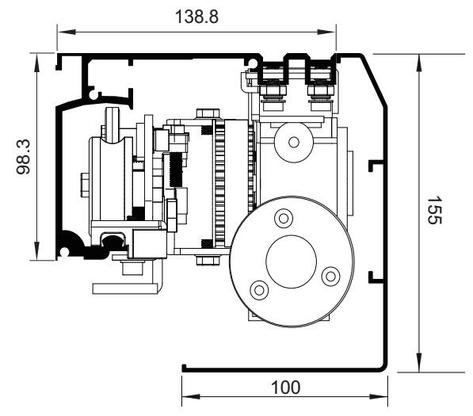

Dimension for automatic sliding door operators

   Automatic sliding door opener advantages:

Send an inquiry

Parameters for electric sliding door

MODEL: Sliding Door Operator VZ-195

Magnetic sliding door systems

Popular product:

Magnetic sliding door opener

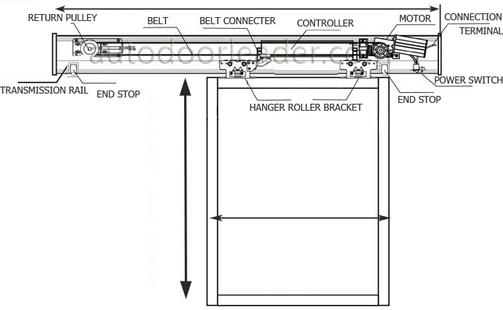

electric sliding door introduce

PORT: Shanghai or Ningbo etc.


automatic sliding door install guide

** ISO9001&CE certificated
** With high silicon rubber aluminum wheel hanger roller
** A highly intelligent multi-CPU control system, providing easy adjustable  function and high security performance
** Low noise design (<45db)
** Energy-saving, sound proofing
** When the power is off, can choose the backup batteries to keep the door in normal operation
**Microcomputer intelligent control and humanized mechanical configuration.
**Powerful 24V DC reared motor provides excellent thermal equipped and quiet operator.Specially-designed sealing system has good tightness, ensuring no oil leakage
**Safety radar, ensure safe passage.
**Easy Installation: The 4.2meter length aluminum base is cut as specified, and all parts are mounted on the base at the factory.
**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.
**Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.

The control device of LEADER automatic sliding door opener contains basic function and extensional function, automatic operation/hold-open/closed/half-open to meet customer needs. Control device has multiple interfaces for choosing various connectors such as: safety beam photocell, electric locks, etc. LEADER automatic sliding door operator devices adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output , it can adapt to a large door.

Heavy Duty Electric Sliding Door Operator

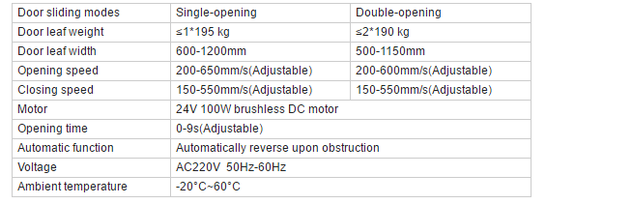

   Electric sliding door operator parameters:

LEAD TIME: 1-5 Days


   Automatic sliding door actuator features:

Wisdom miniature computer controller
Automatic door mind is totally microcomputer optimized. Internal signal loops adopt no contact control mode, even after longtime working, opening and closing movement is still accurate. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.
The door open immediately if encounter an obstacle.
When the doors is closing, if it meets a pedestrian or obstacle, the door leaf will reverse automatically, the door will open immediately, it prevents pinching events and door damaged ,also improves the automatic door working life.
If the electricity is failed, the door will stop moving. However, there is very little resistance, door leaf can easily be opened by hand.
Good modular design offers very easy installation. Only need to fit all components into the guide rail and connect each part well, it can work after activating the power supply.

WARRANTY: 24 Months


Contact Us:
