Relate automatic sliding door operator:

Model: HH-130


telescopic automatic sliding door


LEAD TIME: 5-10 Days


Automatic telescopic sliding door openers are best solution for entrances with limited space, partition or want to expand and maximize opening width to narrow entrance door. It can be two moving door panels and one fixed door panel, or three moving door panels and one fixed door panel, or without fixed door panel.

Our automatic telescopic sliding door use linear magnetic drive sliding door system, it has much more advantage compare with normal belt sliding door system, like slim track, elegant design, safety return, soft and quiet operation, easy installation.

Send an inquiry

Automatic telescopic sliding doors

WARRANTY: 24 Months

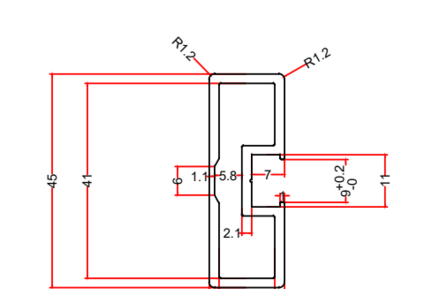

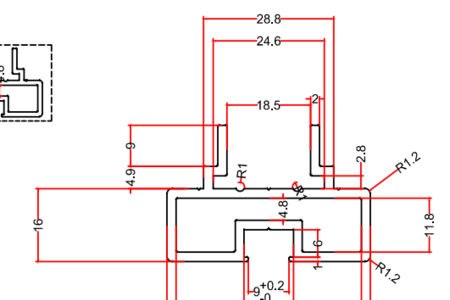

   Provide Super slim door frame for telescopic sliding door system:

automatic telescopic sliding door opener
tel no.

FOB PRICE: 600-800 USD

You are here:Home > Solution > Automatic telescopic sliding doors

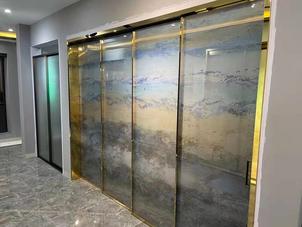

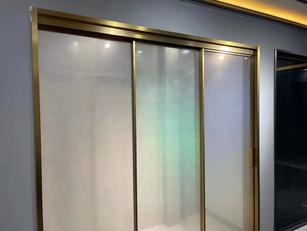

   Electric Telescopic Sliding Door Projects:


Telescopic sliding door mechanism

MODEL: Telescopic sliding door opener TS120


   Overlapping Automatic Sliding Doors Parameters:

   Telescopic ​Automatic Sliding Door Description:

Door opening: One side or bi-parting opening.

Door leaf: (movable leaf + fixed leaf)2+1, 3+1, 4+1, 2+0, 3+0, 4+0
Door weight: Movable leaf total weight less than 500kg
Opening/Closing speed: 250-500mm/s (adjustable)
Voltage: 220V/110V
Opening delay time: 2-20s (adjustable)
Manual Open Force:<10N
Power consumption:<100W

door frame

SHIPPING: Worldwide by plane or sea

PORT: Shenzhen, Shanghai or Ningbo etc.
