​​​ES200 Automatic Sliding Door Mechanism 110/220V


automatic sliding doors

MODEL: Sliding Door Operator VZ-ES200


** ISO9001&CE certificated
** With high silicon rubber aluminum wheel hanger roller
** A highly intelligent multi-CPU control system, providing easy adjustable  function and high security performance
** Low noise design (<45db)
** Energy-saving, sound proofing
** When the power is off, can choose the backup batteries to keep the door in normal operation
**Microcomputer intelligent control and humanized mechanical configuration.
**Powerful 24V DC reared motor provides excellent thermal equipped and quiet operator.Specially-designed sealing system has good tightness, ensuring no oil leakage
***Safety beam detector aviod injury people when the door closing. .
**Easy Installation: The 4.2meter length aluminum base is cut as specified, and all parts are mounted on the base at the factory.
**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.
**Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.

PORT: Shanghai or Ningbo etc.

Send an inquiry

Electric sliding door operator with dunker motor (ES200) is heavy duty automatic sliding door operator with special high-strength hangers,motors,pulleys, etc. It is widely used for heavy weight automatic doors.

Our ES200 is the copy model of the dorma ES200, the spare parts can replace Dorma sliding door operator

The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/closed/half-open to meet customer needs. Control device has multiple interfaces for choosing various connectors such as: safety beam photocell, electric locks, etc. Its drive devices adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output , it can adapt to a large door.

WARRANTY: 24 Months

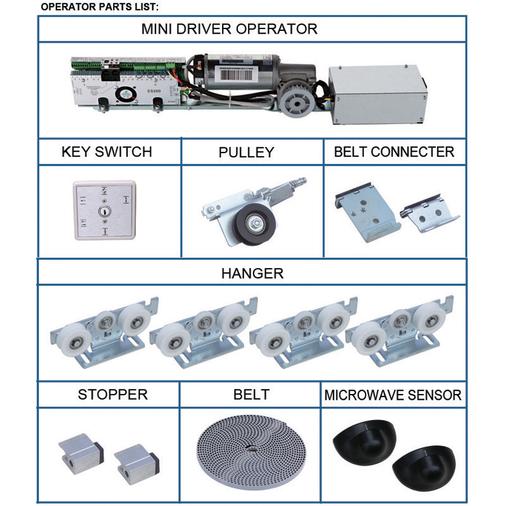

automatic sliding door mechanism detail
ES200 Automatic sliding door mechanism

LEAD TIME: 1-5 Days


Relate automatic sliding door operator:
Model: VZ-125


FOB PRICE: 320-600 USD

Wisdom miniature computer controller
Automatic door mind is totally microcomputer optimized. Internal signal loops adopt no contact control mode, even after longtime working, opening and closing movement is still accurate. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.
The door open immediately if encounter an obstacle.
When the doors is closing, if it meets a pedestrian or obstacle, the door leaf will reverse automatically, the door will open immediately, it prevents pinching events and door damaged ,also improves the automatic door working life.
If the electricity is failed, the door will stop moving. However, there is very little resistance, door leaf can easily be opened by hand.
Good modular design offers very easy installation. Only need to fit all components into the guide rail and connect each part well, it can work after activating the power supply.

motorized swing door kit

   Automatic Sliding Door Mechanism description:
