Rated Voltage110/220V 50/60HZ110/220V 50/60HZ
110/220V 50/60HZ
110/220V 50/60HZ
Electric Motor110/220V AC
110/220V AC
110/220V AC
24VDC
Motor Power 350W250W200W120W
Gear ModulusM=4M=4
M=4
M=4
MAX. Loading Weight1300KG800KG600KG500KG
Open/Close Speed12m/min12m/min
12m/min
12m/min
Output Speed50r/min±10%50r/min±10%50r/min±10%
50r/min±10%
Output Torque (N.m)16.8-32.016.8-32.0
16.8-32.0
16.8-32.0
Limit Switch TypeMagnetic/springMagnetic/spring
Magnetic/spring
Magnetic/spring
Max.Pull Force1100N1100N1100N1100N
Noise≤55dBa≤55dBa
≤55dBa
≤55dBa
Working Temperature-20℃~+55℃-20℃~+55℃
-20℃~+55℃
-20℃~+55℃


sliding gate accessories
Tel NO.
   PARAMETERS:

   CONTROL PANEL MAIN FEATURES:

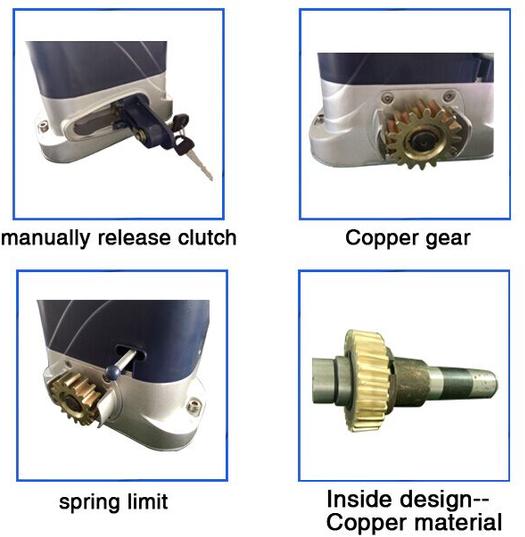

   AUTOMATIC SLIDING GATE ACTUATOR STRUCTURE:

Contact Us:

automatic sliding gate mechanism
solar power sliding gate opener
china automatic sliding gate operator
electric sliding gate opener

   AUTOMATIC SLIDING GATE OPEner FEATURES:

Email:autodoorleader@gmail.com

title

Share to:

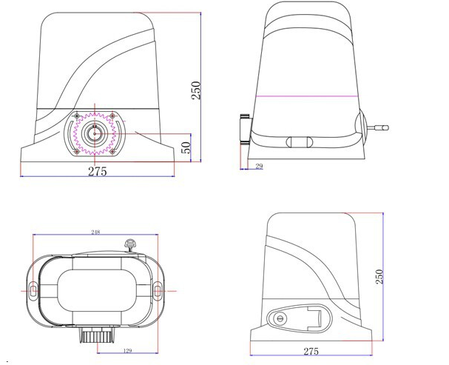

   DIMENSION:
electric sliding gate opener mount guide

WhatsApp:+8618971265826

1. Single button can finish all the control command(such as close,open,stop.)
2 Can adjust the output power of motor
3. Can adjust the working time of motor
4. Can program the time of auto close
5. Can set auto close when restored power after power off
6. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc

Skype

Send an inquiry

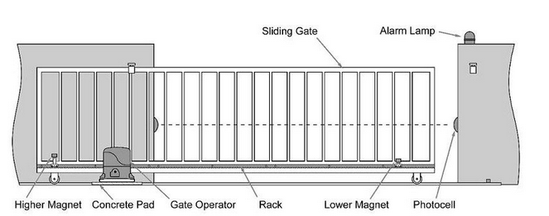

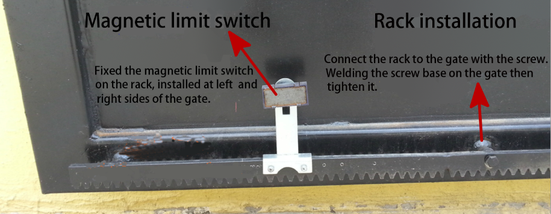

   INSTALLATION:

​*Soft start and soft stop,ensures the motor working steadily and smoothly
​*Intelligent operation: Stop/Reverse in case of obstruction during door opening/closing.
*Emergency release key for power failure.
*​Movement indication - the indicator lights up when the door is moving.

*Magnetic limit switch, the door stops when it moves to the limit.

* Open and close limits have a self-locking function.

*Low heating, slide running, protect from water and burst.

*Adjustable Auto-Close interval
*Overtime and overheating  protection

*Dc type can put transformer and back up battery inside.

*Automatic close time can be adjusted from approximately 3 to 120seconds


Skype:autodoorleader

Best solution for your  automatic door systems

TEL:+8618971265826

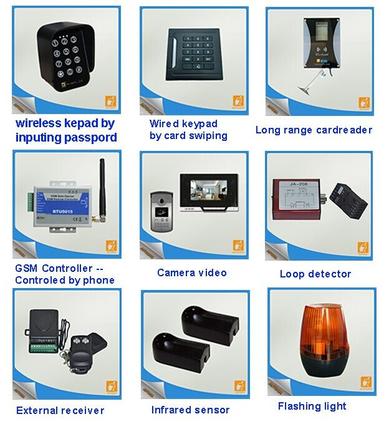

   OPTIONAL ACCESSORIES:

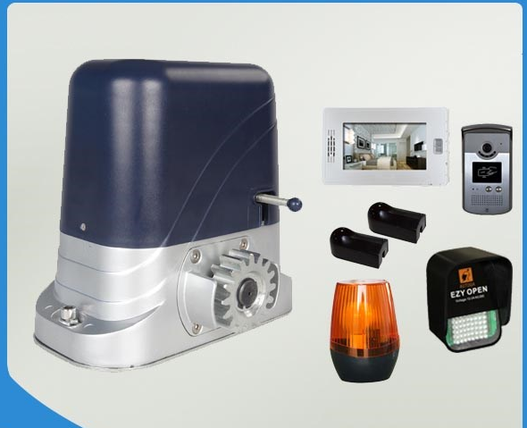

Automatic Sliding gate Opener

You are here:Home > Product list > Automatic sliding gate opener

automatic sliding gate installation

Also can be connected with solar power.
