Power Supply Voltage: AC/DC12∽36V                       Quiescent Current: 15mA
Action Current:80mA(DC12V Power Supply Time)(Wireless receiver)
Main Contact Capacity:20A    14VDC  (Wireless receiver)
Contact Holding Time:2 Seconds     (Wireless receiver)
Power Supply Voltage: 6V(4pcs 3V Button batteries)  (Hand Press transmitter)
Battery using life: Press button 200 times per day on average, good quality battery can last for 300 days ( Hand Press transmitter ).
Sending and receiving distance: Depends on the actual field of electrical shielding environment, it can reach more than 5 meters under normal conditions.
Working Temperature: -42℃∽45℃            Working environment humidity: 10∽90%RH
Size: 89mm(Diameter)x10mm(Thickness) (Hand press transmitter)        123mm(L)x50mm(W)x32mm(H)

Wireless Push Button for Automatic Sliding Door

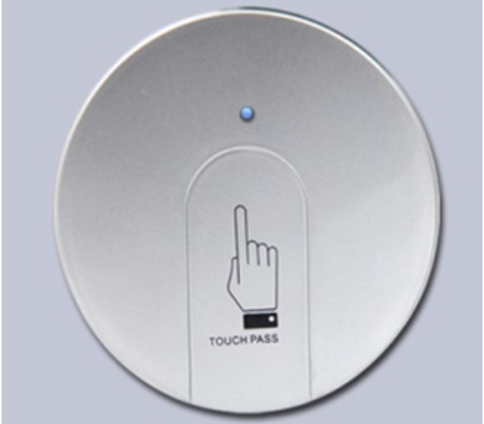

Wireless push button

WhatsApp:+8618971265826

Whatsapp
Skype

Email:autodoorleader@gmail.com

   PARAMETERS:

It adopt the frequency stabilization technology of SAW resonator, which has good frequency consistency and high stability of wireless transceiver. Working frequency is 315M, and the stability is better than 10-5. Hand press transmitter adopt low power of transmission technology, which has the characteristic of long transmitting distance, low power consumption and long battery life. Four point push trigger design, trigger easily and reliable with good feeling touch. With large capacity contact signal output, it can be used for external automatic door machine and electric lock access control. Use self-learning code, convenient for customers to add hand press switch at anytime. Wide voltage input design, 12-36V AC/DC power input is valid. The red light will turn to green when the remote control switch, which can confirm whether the switch is effective or not.

Send an inquiry

Best solution for your  automatic door systems

  Wireless Push Button Features:
