  Facial Recognition Sensor Parameter:

Facial Recognition Sensor For Automatic Door

Contact Us:

   LV810 Face Recognition CAMERA Sensor FEATURES:

You are here:Home > Product list >Access control system & accessories > Facial Recognition Sensor For Automatic Door


Facial recognition sensor for automatic door
Facial recognition sensor for automatic sliding doors

Face storage: 500pcs
Maximum installation height: 3.5 meters
Recognition speed: 200ms(living body 500ms)
Recognition angle: adjustable by 25°~75° in a vertical direction
Night vision: yes
Power supply: AC/DC 12-30V
Standby current: 145mA
Action current: 165mA
LED indicator: When power on, green light is alway on for 12s, standby-RED, recognition success-BLUE, function adjust-GREEN
Temperature: -30°C~60°C
Humidity: 10%~90%RH
Dimension: 96(L)x82(W)x46(H)mm

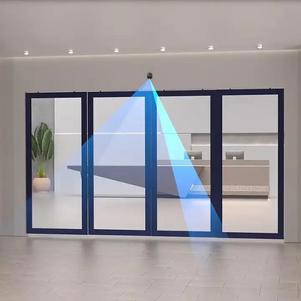

Our newly launched LV810 Face Recognition Camera, which is the application of face recognition technology to authorize the door opening function. This motion sensor camera is top mounted on the door head, to unlock any type of automatic door with the facial recognition feature and authorization, and is appropriate for use in access control situations at industrial and workplace entrances.

1. Automatic door access control system as motion sensor by face recognition.
2. Face authorization to open the door, when many people enter only one of them needs to beidentified to open the door.
3. The 4-key remote control with different function, Key A open the door, Key B working mode, Key C add face data, Key D delete face data.
4. The camera angle is adjustable up and down by 50° adjustable, suitable for different installation height, and maximum installation height of door can arrive 3.5 meters.
5. Can provide illumination fill light recognition in night scene.

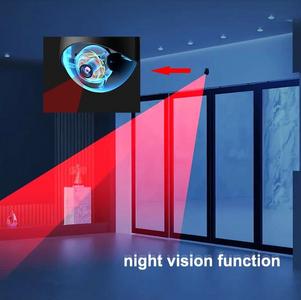

Facial recognition sensor night vision
