Hand sensor and press switch 2 in 1

Contact Us:

Skype:autodoorleader

Send an inquiry

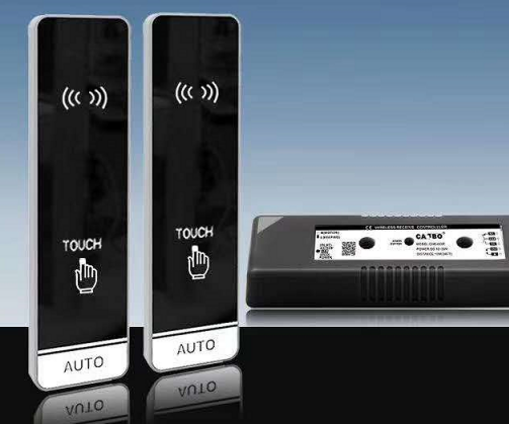

Product has both hands sensor and press switch for autodoor access control system. It adopt the frequency stabilization technology of SAW resonator, which has good frequency consistency and high stability of wireless transceiver. Hand press transmitter adopt low power of transmission technology, which has the characteristic of long transmitting distance, low power consumption and long battery life. With large capacity contact signal output, it can be used for external automatic door machine and electric lock access control. Use self-learning code, convenient for customers to add hand press switch at anytime. Wide voltage input design, 12-36V AC/DC power input is valid.

hand sensor and touch switch
Email

WhatsApp:+8618971265826

Email:autodoorleader@gmail.com

TEL:+8618971265826

Tel
Skype

Best solution for your  automatic door systems

Power supply AC/DC12-36V
Static Current 15mA
Action Current 80mA (wireless receiver)
Relay contact capacity 20A  14VDC (Wireless receiver)
Power supply 6V  (2/pcs 3V battery)
Emission Current 3.9mA
Transmitting frequency    2.4GHZ
Life of Battary more than 20000 times
Transmit distance more than 25M -30℃-50℃
Operation temperature -42°C - 45°C
Operation Humidity 10-90%RH
Dimension
34MM (L) x 34MM (W) x 11.4MM (H) (Pushing panel)
123MM (L) x 50MM (W) x 32MM (H)  (Receiver )

Whatsapp

  2 in 1 sensor and switch Features:

   PARAMETERS:
