MODEL:Swing gate operator PKM C02

automatic swing gate actuator

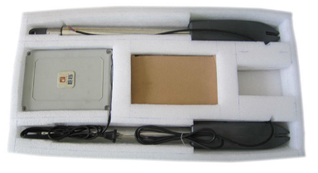

Name: Packaging of automatic swing gate opener

         Under this package, the Dual Arms Swing Gate  won't be distroy when it dispatch to you.

   AUTOMATIC SWING GARAGE DOOR OPERATOR PARAMETERS:

Skype:autodoorleader

WARRANTY: 24 Months

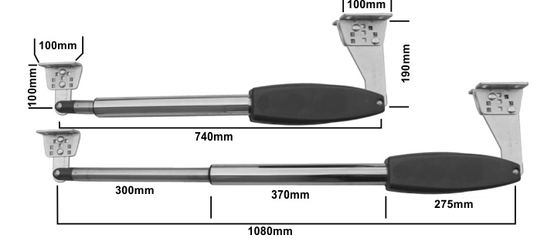

Name: Swing Arms


      The dual swing arms was made by 304 stainless steel, waterproof.

Automatic Swing Gate Operators

Send an inquiry

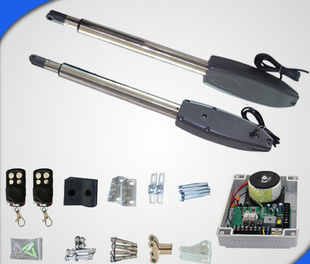

    OPTIONAL ACCESSORY AND THEIR FUNCTION:
Installation for electric door operator
swing gate control panel

   Description:

PORT: Shanghai or Ningbo etc.

Ebay
electric swing gate motor

SHIPPING: Worldwide by sea or by                    express delivery

TEL:+8618971265826

You are here:Home > Product list >Automatic swing gate opener > automatic swing gate

whatsapp
swing gate package
Tel
Email
   ELECTRIC SWING GATE ACTUATOR DETAILS:

   ELECTRIC SWING GATE OPENER FEATURES:

Contact Us:

automatic swing gate opener
automatic swing gate actuator

WhatsApp:+8618971265826

Name: Dual Arms Control Board


        The control board was made by our company, and it take the Greece program, it can work very stable

Photocell:

1.It can detect the tiny obstruction during gate closing or opening and make the gate open automatically.Avoiding people and gate opener from hurting.

2.The valid detecting rang og the photo cell is 10 meters.

Caution light

When the person force entering the house, the caution light will light and sound.

Access keypad

Connecting with the access keypad, you can set the code or using the card to control the gate access.

Electric latch

DC 24V latch for additional safety of the gate.Release key to unlock the latch when power failure.

Email:autodoorleader@gmail.com

skype

   INSTALLATION:

** Soft start and soft stop,ensures the motor working steady and smoothly
**Emergency release key in case of power failure
**Dual/Single gate running mode
**Adjustable opening/closing interval between master and slave gate
**Stop/Reverse in case of obstruction during gate opening/closing.
**Built in adjustable auto-close time
**Copper made worm gear driving design ensures the motor longer working life and extremely quiet.
** DC 24V low voltage motor that is safe and compatible with back-up power supply.

​**Super quick manually release with secure customized key in process of power failure.

**The swing gate opener have been field tested by EU and US clients with Min 48,000 open/close cycles.

Name:  1. Driving part   2. Motor
        1) Copper made worm gear driving ensures the motor longer working life and extremely quiet.

        2) The wire of the motor was made by pure Copper,  it's not just print copper in the wire.

Power supply: AC 110-240V ,50-60Hz
Current: 5A
Actuator Running Speed: 2.4CM/S
Max Single left width: 2.5m/3.5m
Electric Motor Power:24V 60W*2
Motor speed: 100RPM
Actuator Stroke: 300mm / 400mm
Max single leaf weight: 300kg/350kg
Protection calss: IP55

Operating ambient Temp.: -20--+50

LEAD TIME: 1-5 Days

FOB PRICE: 165-200 USD

Automatic Swing gate systems make a great statement: they’re stylish, giving your house a veneer of luxury, and will protect your family, as well as any pets you’d like to keep safe in your yard.

Elegant design and versatile application for gates that are opened and closed frequently.
The slender structure permits excellent integration with the gate and makes installation easy.

   DETAIL:
