floor spring automatic swing door operator

Skype:autodoorleader

MODEL: Auto Floor Spring Door DSW-3/3A

WARRANTY: 24 Months

Relate product

Email:autodoorleader@gmail.com

180 Degree Floor Spring Automatic Swing Door

Floor spring automatic swing door residential
Floor spring automatic swing door openers

   Application area

Share to:

It suitable for various situations, ranging from residential access to high traffic commercial entrances, such as hospitals, office buildings, shopping malls, banks, hotels and restaurants, etc.

SHIPPING: Worldwide by sea or by                    express delivery

WhatsApp

   FLOOR CONCEALED SWING DOOR OPENERS INSTALLATION:

TEL:+8618971265826

PORT: Shanghai or Ningbo etc.

Door style
Single leaf/Double leaf
Open angle
Max.180 degree
Door width
Max.1200mm
Door leaf weight
Max.150kg
Protection level
IP68
Rated power
55W
Opening and closing time
6-12s(adjustable)
Power supply
AC110V/220V, 50Hz-60Hz
Product weight (unit)
5.5kg
Maximum torque165Nm
Operation noise
less than 55db
Ambient temperature
-20°C~50°C


   Two way auto swing door operator fEATURE:

Contact Us:

FOB PRICE: 250-350 USD

Skype

You are here:Home > Product list > Automatic swing door openers > Floor Spring Automatic Swing Door

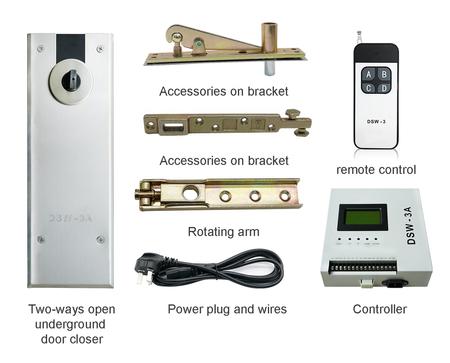

   MECHANISM ACCESSORIES:

LEAD TIME: 2-4 Days

1. The control box has display screen with debugging interface, which is easy to operate. Also there are various function
terminals connecting to access control system, electric lock, backup battery etc.
2. The casing of the opener is injection molded by BMC. The DC motor is sealed to be super waterproof, fireproof and
corrosion resistant.

3. Compact structure, good sealing performance, seamless splicing, isolated outside noise, making the environment quieter.
4. It is cold resistant and high temperature resistant, working in -20℃ ~ +50℃ environment, can be used indoors and outdoors.
5. Really small size but heavy duty (Max. loading 150kg) and easy construction.


   Floor spring automatic swinging door parameters:
Email

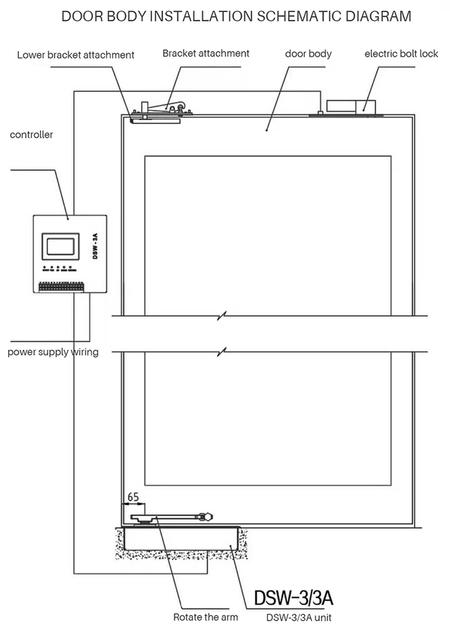

Floor spring auto swing door installation

The optional DSW-3 unit can be opened 90 degrees or the DSW-3A unit can open the door 180 degrees (automatically sensing the passing direction of pedestrians, and opening the door with the pedestrian walking direction).
