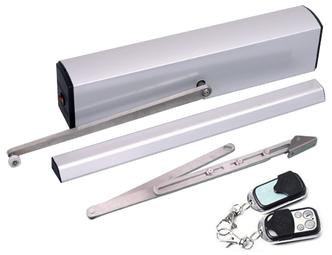

MODEL: Swing door mechanism SW-200
Send an inquiry
WARRANTY: 24 Months

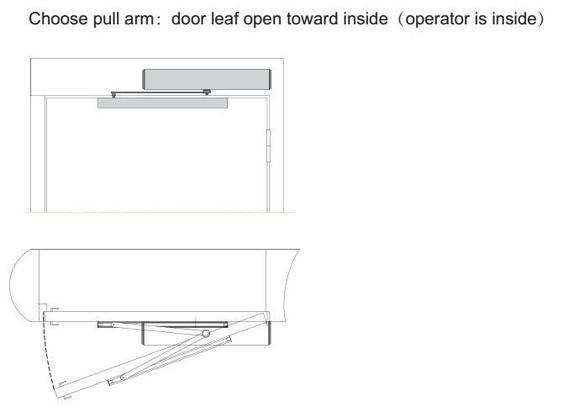

SW200 automatic swing door operators have improved and updated many times since it came into the market in 2010. It's functions and performances are quite mature, safe and efficient now. Regarding the altermative pull arm and push arm, we use high quality stainless steel material, which is advanced and more durable than traditional wrought pig iron.
The automatic swing door operator system is quite convenient and safe for modern and elegant use in buildings. It suitable for various situations, ranging from residential access to high traffic commercial entrances, such as offices, shopping malls, banks,hospitals, hotels, restaurants,etc, even in industrial fields or handicap use, it is also suitable.
PROJECTS FROM OUR CUSTOMERS:
PORT: Shanghai or Ningbo etc.
SHIPPING: Worldwide by sea or by express delivery
Model: SW200 Door style: Single leaf/Double leaf
Open angle: Max.120 degree Door width: Max.1500mm
Door leaf weight: Max.200kg Opening time: 3~10s(adjustable)
Closing time: 3~10s(adjustable) Hold open time: 1-60s(adjustable)
Power supply: AC110V/220V, 50Hz-60Hz Brushless motor: 24VDC , 100W
Manual force: less than 30N Operation noise: less than 55db
Ambient temperature: -20°C~60°C
1. The working parameters, such as opening/closing speed, hold open time, opening/closing angle etc. could be adjusted on the controller directly. It doesn't need a special tools any more.

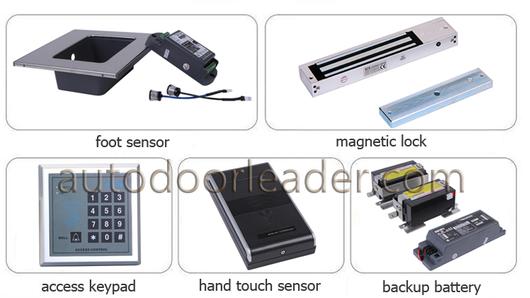

2. 24VDC 100W brushless motor, the motor transmission is simple and stable. The electric magnetlic lock and access control accessories could be connected to the controller directly. It doesn't need separate 12V power supply.
3. Safety anti-clip function: Stop/Reverse in case of obstruction during door opening/closing, which prevents the clamp injury or damage of the door itself.
4. Push and go function: No need to push with force, turn K3 up to choose this function. This is very important for large traffic or crowds in public.
5. Manually open when power off. Optional backup battery can ensure the normal operation in case of power failure.
6. It has passed CE and ISO certificates. We provide 2 year gurantee. During the warranty period, we'll send replacement parts for free if the problem belongs to us.
Notice: the opener can only work properly after mounted on the door. Because it needs to find a closing position first.The motor will just keep rotatin slowly if you test it without mounting on the door..
FOB PRICE: 280-380 USD
LEAD TIME: 1-5 Days
