Concealed automatic swing door residential

1. Concealed design,space saving,looks more beautiful.
2. solid castingground bearing,more durable.
3. Workable with both framed and frameless door.
4. Made of 304 stainless steel.anti-oxidation.
5. Manually access when power off.
6. Easily parameter setting and debug by hand programmer energy saving.
7. Microcomputer technology,self-learning.

Concealed automatic swing door opener

Skype:autodoorleader

Relate product

SW93 Concealed automatic swing door opener, also known as the sky spring, use a concealed design to make the door leaf more beautiful and save space. Compact structure, good sealing performance, seamless splicing, isolated outside noise, making the environment quieter.

Concealed swing door accessories

You are here:Home > Product list > Automatic swing door openers > Concealed automatic swing door opener

FOB PRICE: 250-350 USD

Concealed automatic swing door operator
Email

Contact Us:

Email:autodoorleader@gmail.com

Concealed auto swing door installation

Share to:

   cONCEALED Electric swing door operator fEATURE:

   Concealed automatic swinging door parameters:
Concealed automatic swing door openers
Door style
Single leaf/Double leaf
Open angle
Max.105 degree
Door width
Max.900mm
Door leaf weight
Max.85kg
Protection level
IP12D
Product material:
304 stainless steel, zinc alloy
Hold open time
1-30s(adjustable)
Power supply
AC110V/220V, 50Hz-60Hz
Product weight (unit)
8.5kg
Product volume
470X135X90mm
Operation noise
less than 55db
Ambient temperature
-20°C~60°C


WARRANTY: 24 Months

WhatsApp
title

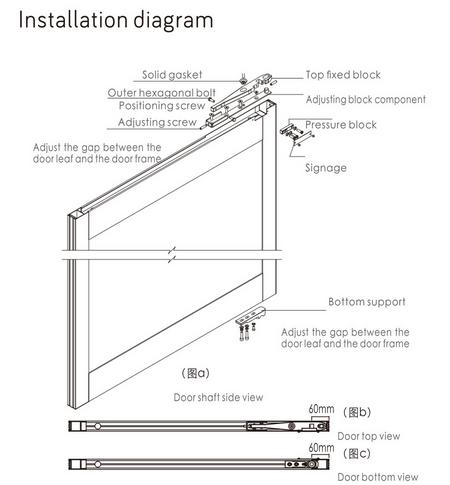

   TOP CONCEALED SWING DOOR OPENERS INSTALLATION:

SHIPPING: Worldwide by sea or by                    express delivery

WhatsApp:+8618971265826

PORT: Shanghai or Ningbo etc.

MODEL: Auto Swing Door Opener SW-93

TEL
Skype

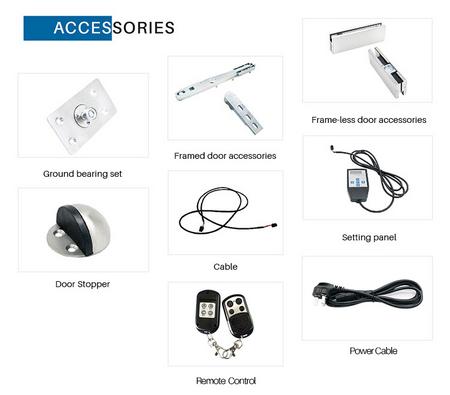

   MECHANISM ACCESSORIES:

Send an inquiry

TEL:+8618971265826

   Application area

It suitable for various situations, ranging from residential access to high traffic commercial entrances, such as hospitals, office buildings, shopping malls, banks, hotels and restaurants, etc.

LEAD TIME: 1-5 Days
