Automatic pivot door openers detail:
Electric pivot doors are often used in upscale residences, commercial buildings, hotels, and other architectural projects where a grand and unique entrance is desired. They combine functionality with aesthetics and can create a lasting impression on visitors.
PORT: Shanghai or Shenzhen etc.
WARRANTY: 24 Months

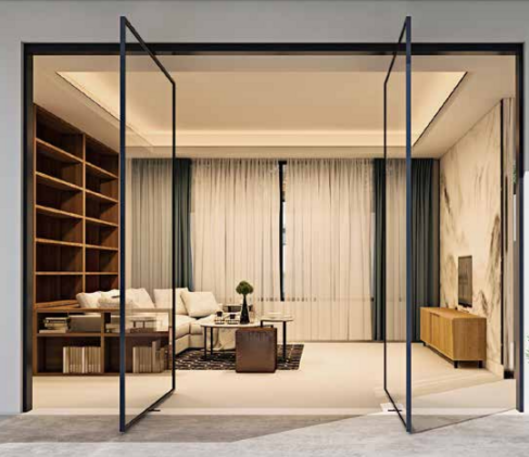

Automatic pivot doors are a type of architectural door design that rotates on a central pivot point, allowing them to swing open or closed in a unique and visually striking manner. Unlike traditional hinged doors, pivot doors do not have hinges on the sides; instead, they pivot on a single point, typically located at the top and bottom of the door.
| Door style | Single/Double/Multiple |
| Open angle | 180° Two way opening. |
| Door width | 700-2000mm |
| Door leaf weight | Max.150kg |
| Opening time | 4-10S (Adjustable) |
| Closing time | 3-12S (Adjustable) |
| Hold open time | 1-30S (Adjustable) |
| Power supply | AC110V/220V, 50Hz-60Hz |
| Output | 24V 80W |
| Manual open force | ≤ 10N |
| Operation noise | less than 50db |
| Ambient temperature | -30°C~50°C |

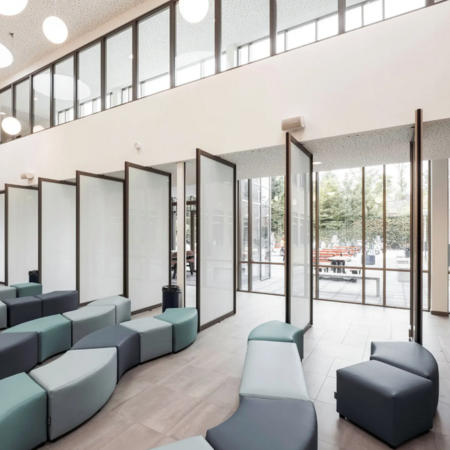

Application area
You are here:Home > Product list > Automatic swing door openers > Automatic pivot door opener
Skype:autodoorleader
TEL:+8618971265826
MODEL: Electric Pivot Door Opener K20
Send an inquiry
Electric pivot door operator parameters:

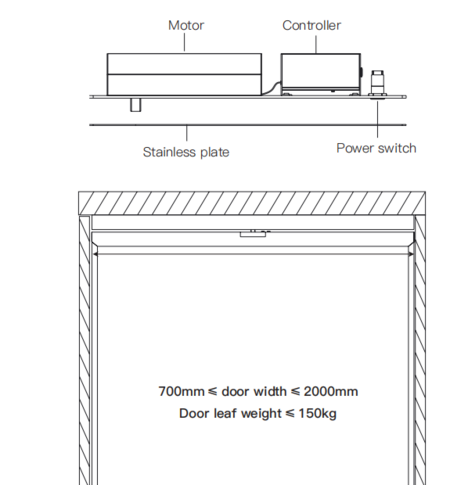

TOP CONCEALED SWING DOOR OPENERS INSTALLATION:
1. 180° Two way opening.
2. Can stop in any position when opening.
3. Safety return when obstacle.
4. Automatic closing within the set time
5. Can set to full open.
6. Can manual open when power off.
7. Open by touch/remote/manual.
8. Fully opened stop time adjustable.
Relate product
LEAD TIME: 1-5 Days
WhatsApp:+8618971265826
Email:autodoorleader@gmail.com
Motorized pivot door operator fEATURE:
SHIPPING: Worldwide by sea or by express delivery
FOB PRICE: 385-425 USD
