Indoor data:

Display: 7 inch (16:9 )

Resolution: digital800*3(RGB)*480/ SIMULATION 480*3

Call sensitivity: 56DB

Input voltage: AC100V-240V 50Hz/60Hz

Power adapter: DC15V 1200mA

Intercom time:120s

Monitoring time: 40s

Effective distance: 200m

Consumption: less than 6W (400mA)

Standby consumption: less than 1.1W

Dimension: 250*155*26.5mm

Outdoor data:

Infrared distance: about 4m

Input voltage: DC15V

Camera: HD colorful CMOS/CCD(optional)

Install method: embedded or wall mounted

Photo transfer distance: about 200m

Dimension: 96*174*62mm

Contact Us:

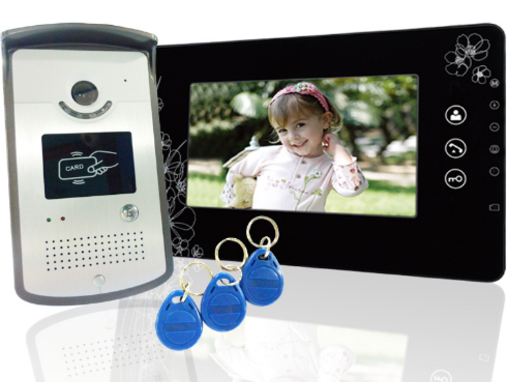

LCD RFID keyfob video intercom with doorbell systems

   LCD RFID keyfob video intercom with door bell systems Features:




1.LCD RFID keyfob video intercom with doorbell systems.Output with protection function, waterproof and damp proof, suitable for outdoor Night vision function.

2. Display the owner's name and work number, send public short message and personal short message; the alarm support working day setting, set equipment parameter by keyboard, off-line operation.

3. Professional door controller functions: 32 time periods/64 time sets/ 16 application groups/8 types of holidays/validity period for card.

4. Flexible application can refine IO interface. Only PIN, only card and card & PIN are available; soft control of any door,various alarm incidents functions: open time-out, close time-out, intrude alarm, force alarm, burglar alarm and fire ALM etc

5. One build-in card reader, two sets of W26 interface, two sets of sensor input, two sets of open button input, two sets of relay output.
